STM32F1 Series · Standard Industrial Control Board

STM32F103ZET6
Standard Industrial Control Board

Reliable and cost-effective standard industrial control board for general automation and logic control. Built on the proven Cortex-M3 platform with isolated digital I/O, CAN, and RS485 — engineered for stable, large-scale industrial deployments.

72MHz Cortex-M3 CAN / CANopen RS485 / Modbus Isolated DI / DO HMI Interface Standard Grade High-Volume OEM
📩 Request Quote / Customization ← All Products
MCU STM32F103ZET6
Core / Speed Cortex-M3 @ 72MHz
CAN Interface CAN / CANopen
Serial Interface RS485 / Modbus RTU
Digital Input Isolated DI
Digital Output Isolated DO
Application General Control · HMI
Target High-Volume OEM

Technical Detail

Board Design & Feature Breakdown

STM32F103ZET6 standard board — overview and key specifications
STM32F103ZET6 standard board — Cortex-M3 core and system architecture

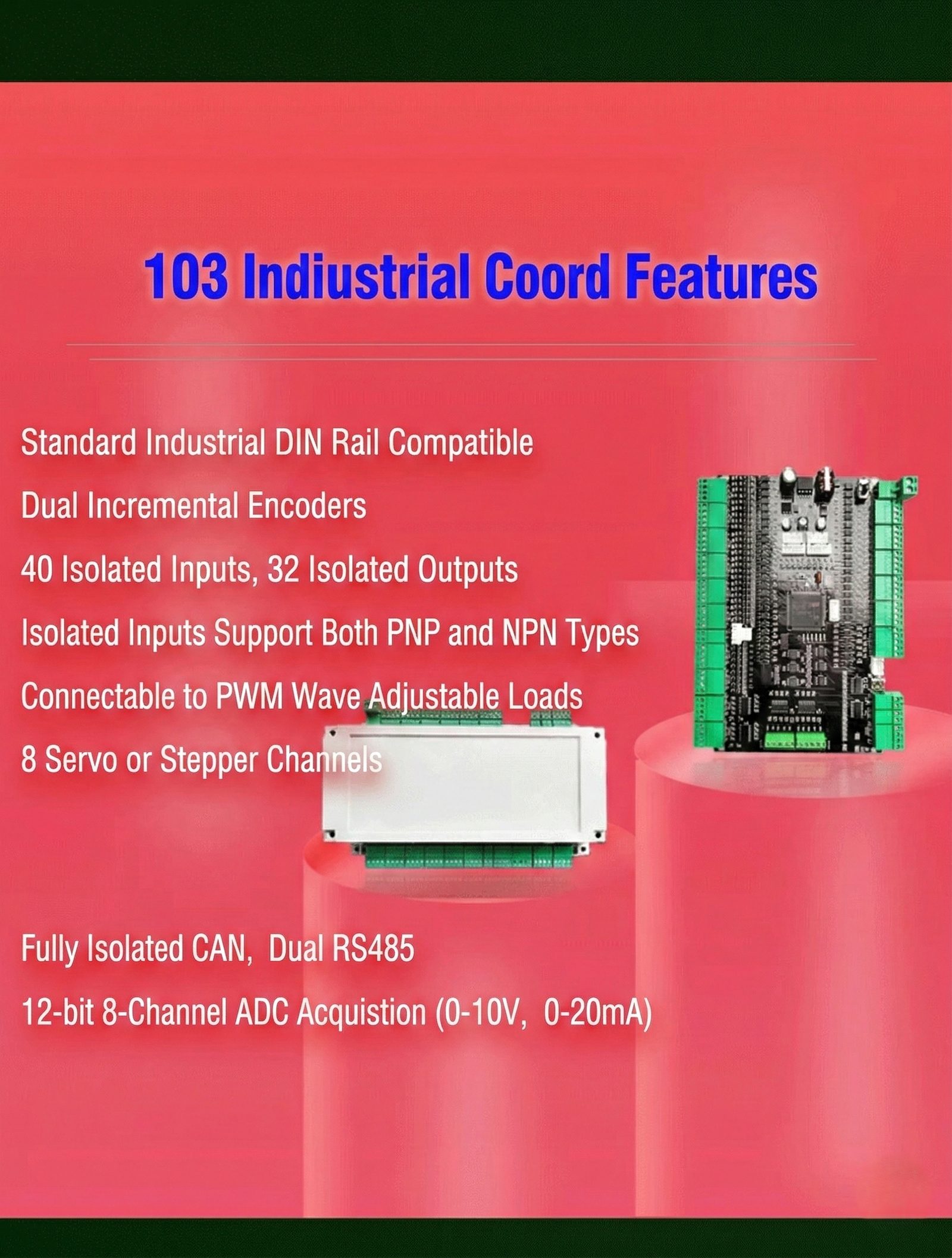

STM32F103ZET6 standard board — CAN and CANopen interface
STM32F103ZET6 standard board — RS485 and Modbus serial interface
STM32F103ZET6 standard board — isolated digital input configuration
STM32F103ZET6 standard board — isolated digital output configuration

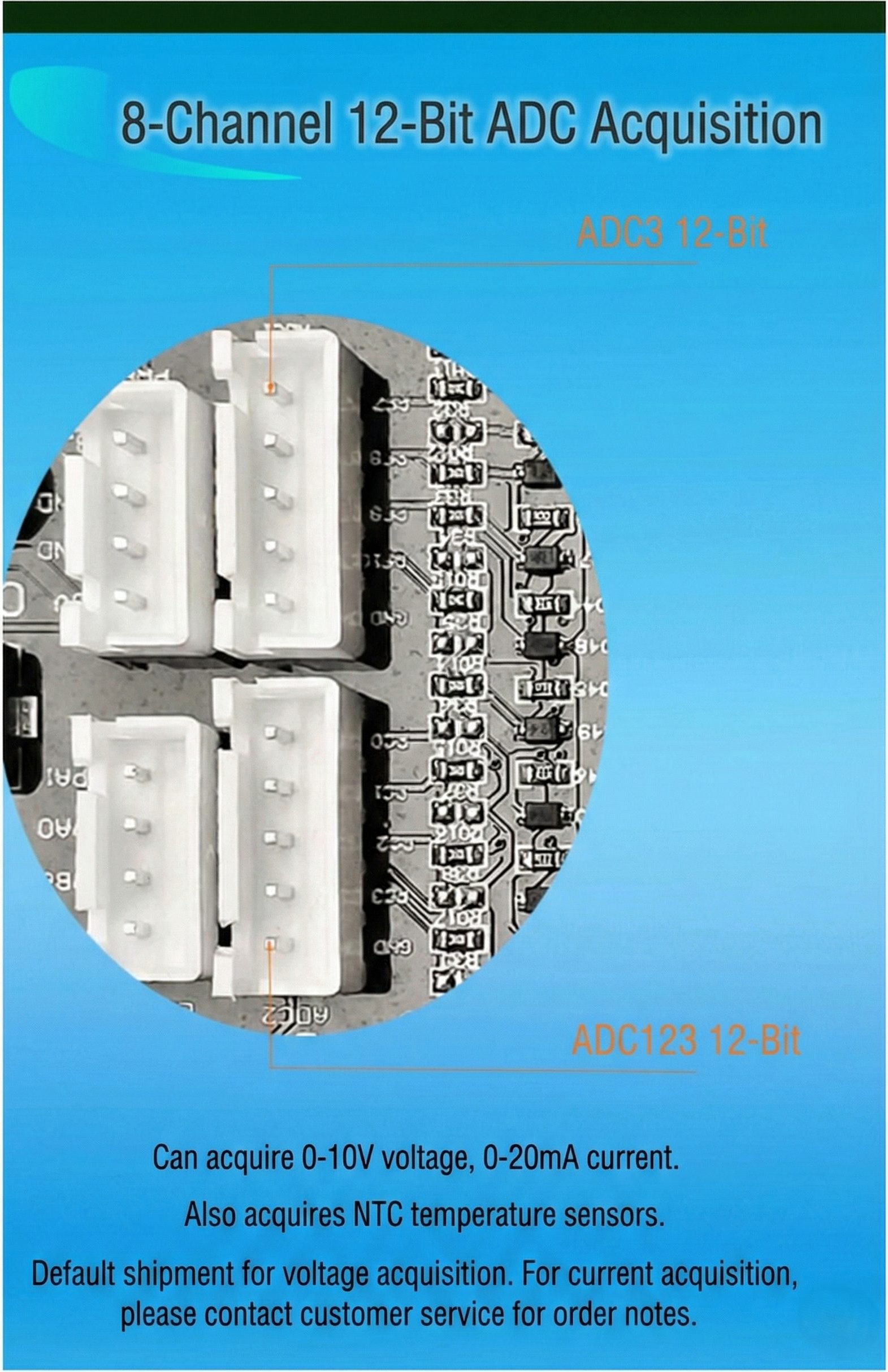

STM32F103ZET6 standard board — HMI and display interface

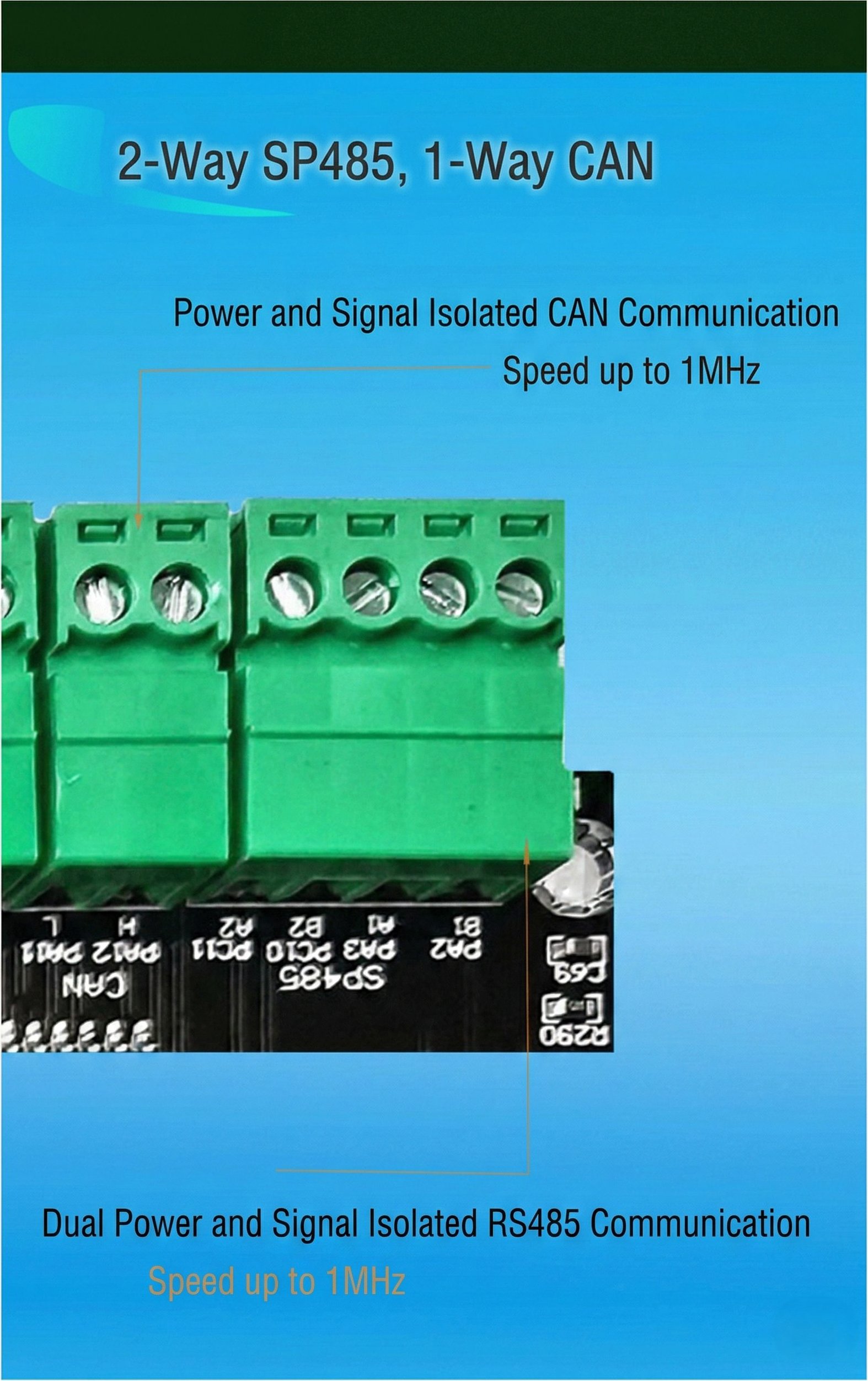

STM32F103ZET6 standard board — sensor and actuator integration

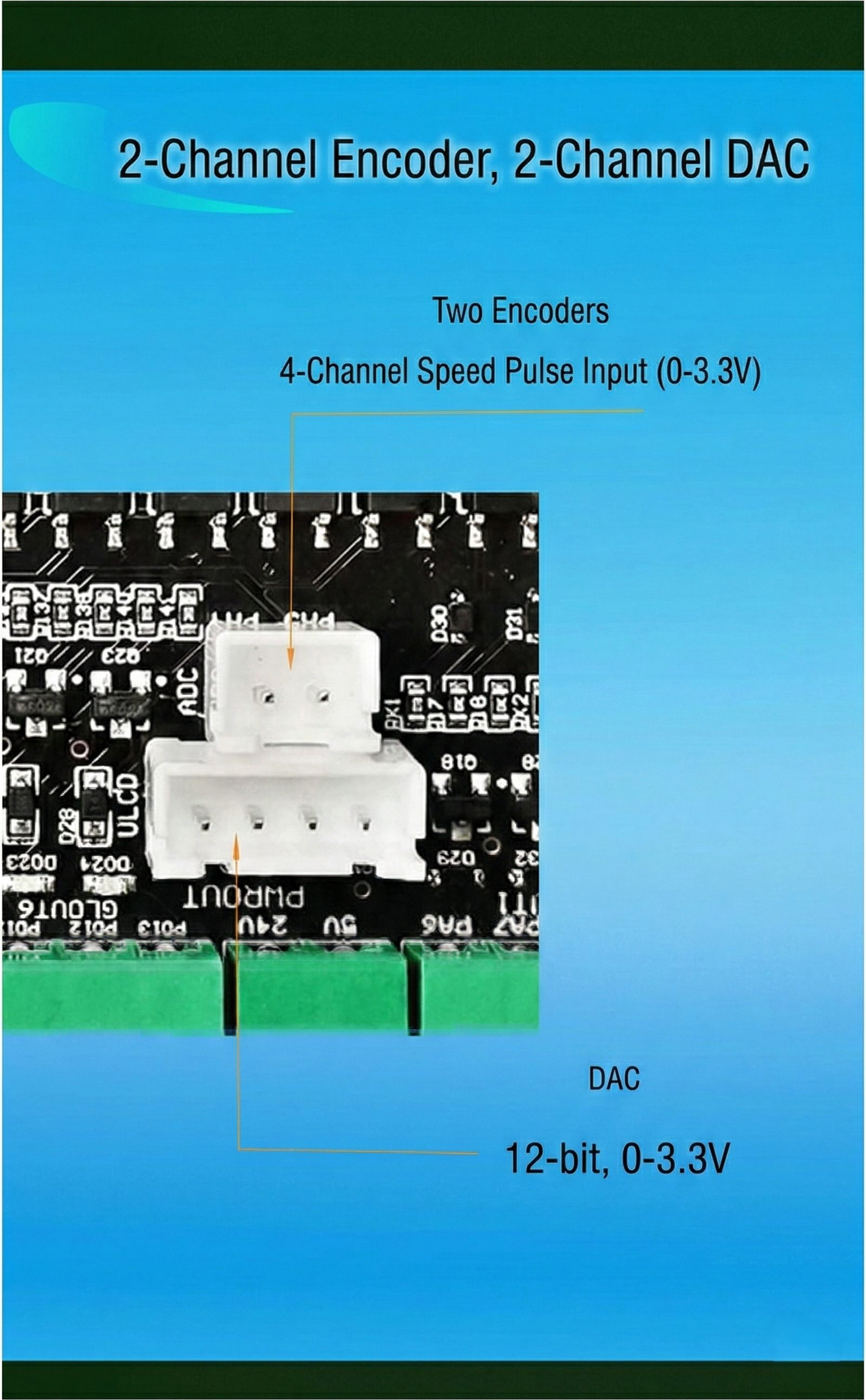

STM32F103ZET6 standard board — connector layout and pinout

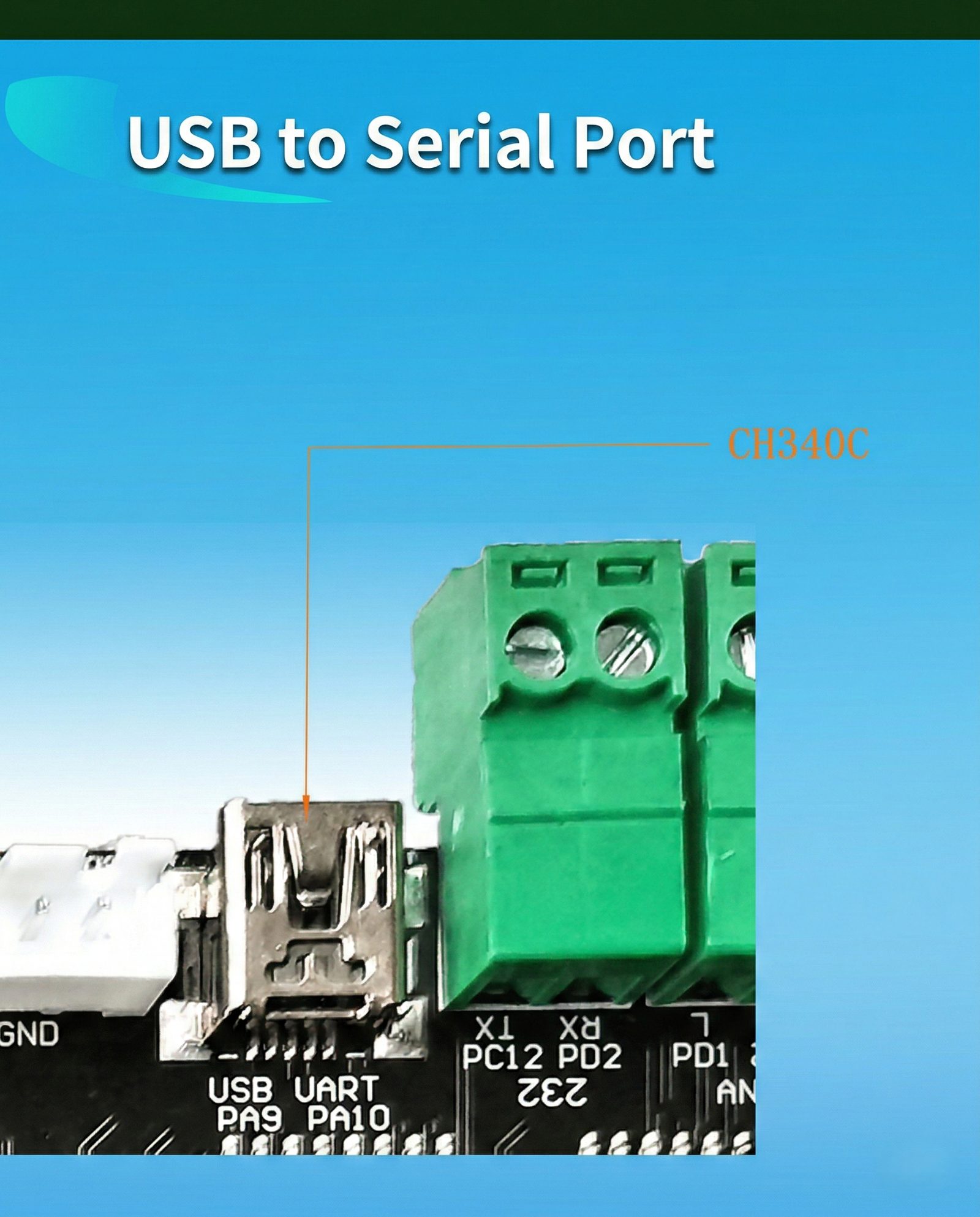

STM32F103ZET6 standard board — board dimensions and mounting
STM32F103ZET6 standard board — power supply and protection circuit

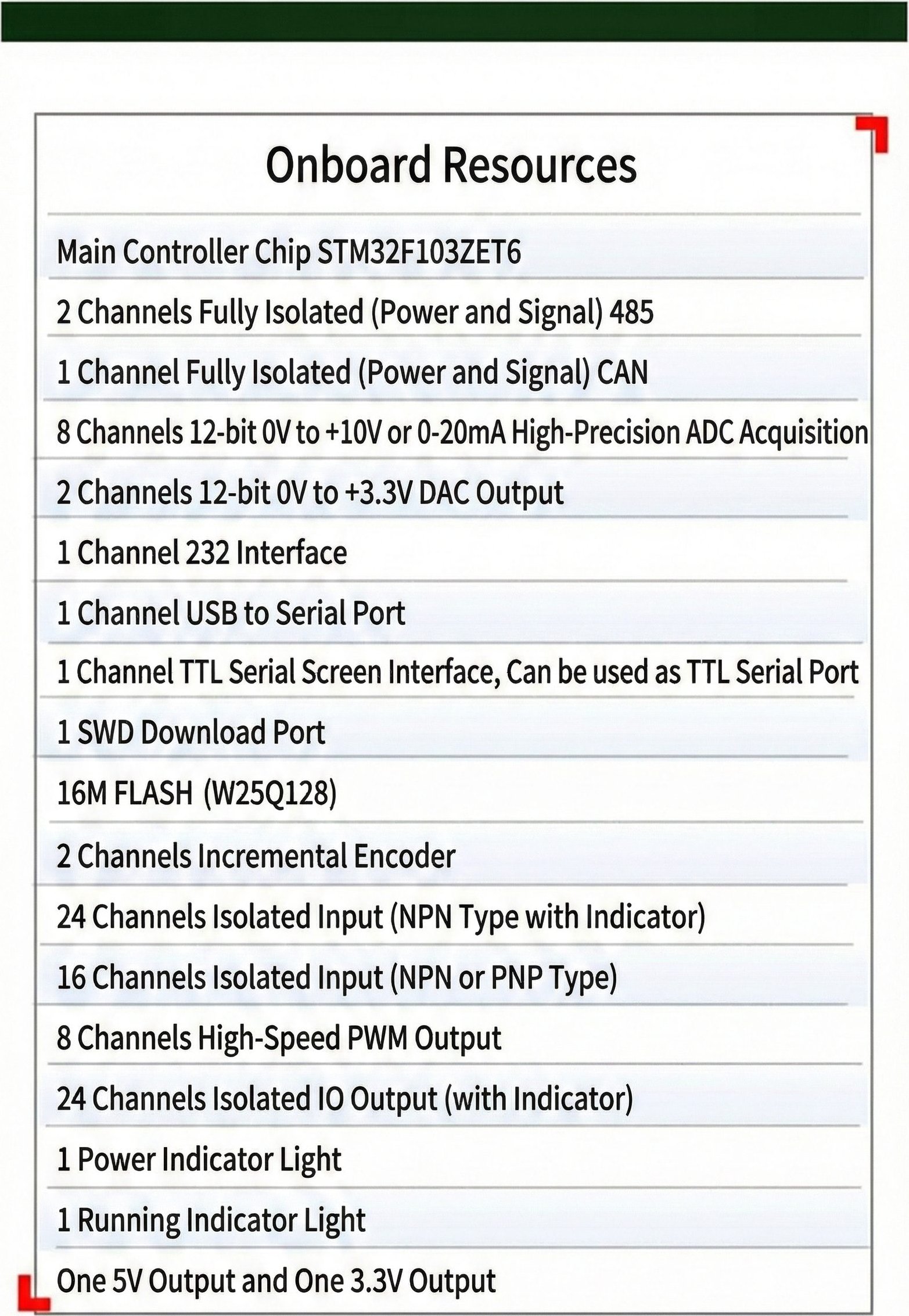

STM32F103ZET6 standard board — EMC design and isolation

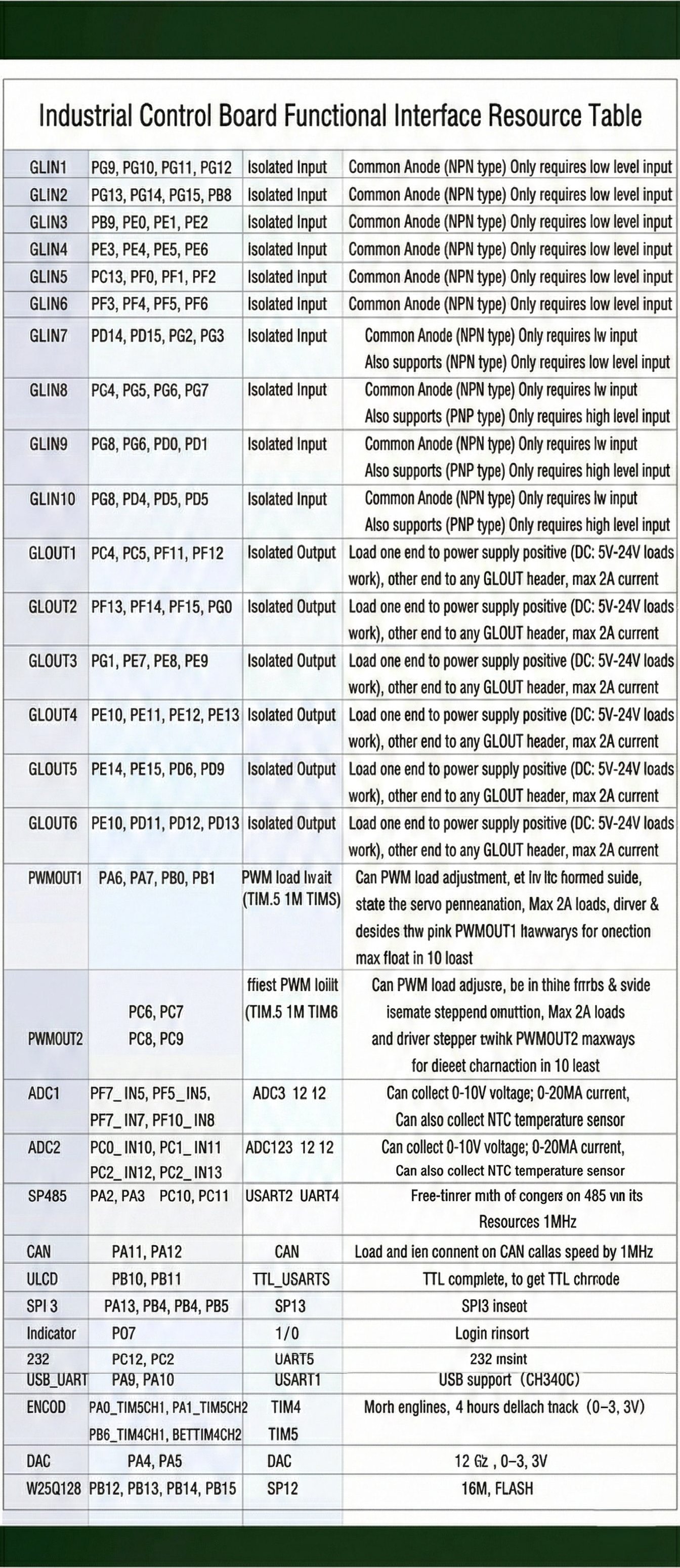

STM32F103ZET6 standard board — industrial wiring and application example

Need This Board or a Custom Version?

Tell us your I/O count, protocol, and volume — we'll provide a solution and quote.
